Description
MKE Tools are proud to offer the MILWAUKEE METAL DRILL BITS HSS ROLLFORGED – DIN 338.
Brief overview of the Milwaukee Metal Drill Bits Hss Rollforged – Din 338:
- High speed steel rollforged metal drill bits produced according to DIN 338.
- Oxide coating enables quick swarf removal.
- Normal point shaped cutting tip with 118° angle.
- Type N flute normal angle.
- Suitable for drilling in steel, cast iron, alloyed and non-alloyed material up to 800 N/mm².
- Colour: black.
Model Specifications
Metal Drill HSSR D338 Set-19pc
| Article no.: | 4932352468 |
| Name: Model Variant: | HSSR Set – 19 pcs |
| Contents: | ⌀ 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 mm |
| Packed content: | 19 |
| EAN: | 4002395371273 |
Metal Drill HSSR D338 Set-25pc
| Article no.: | 4932352469 |
| Name: Model Variant: | HSSR Set – 25 pcs |
| Contents: | ⌀ 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5/ 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm |
| Packed content: | 25 |
| EAN: | 4002395371280 |
Metal Drill HSSR D338 1.0mm-10pc
| Article no.: | 4932363444 |
| Working length [mm]: | 12 |
| Name: Model Variant: | HSSR 1.0 x 34 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329458 |
Metal Drill HSSR D338 1.5mm-10pc
| Article no.: | 4932363449 |
| Working length [mm]: | 18 |
| Name: Model Variant: | HSSR 1.5 x 40 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329502 |
Metal Drill HSSR D338 2.0mm-10pc
| Article no.: | 4932363454 |
| Working length [mm]: | 24 |
| Name: Model Variant: | HSSR 2.0 x 49 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329557 |
Metal Drill HSSR D338 2.5mm-10pc
| Article no.: | 4932363459 |
| Working length [mm]: | 30 |
| Name: Model Variant: | HSSR 2.5 x 57 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329601 |
Metal Drill HSSR D338 3.0mm-10pc
| Article no.: | 4932363464 |
| Working length [mm]: | 33 |
| Name: Model Variant: | HSSR 3.0 x 61 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329656 |
Metal Drill HSSR D338 3.2mm-10pc
| Article no.: | 4932363466 |
| Working length [mm]: | 36 |
| Name: Model Variant: | HSSR 3.2 x 65 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329670 |
Metal Drill HSSR D338 3.5mm-10pc
| Article no.: | 4932363469 |
| Working length [mm]: | 39 |
| Name: Model Variant: | HSSR 3.5 x 70 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329700 |
Metal Drill HSSR D338 4.0mm-10pc
| Article no.: | 4932363474 |
| Working length [mm]: | 43 |
| Name: Model Variant: | HSSR 4.0 x 75 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329755 |
Metal Drill HSSR D338 4.2mm-10pc
| Article no.: | 4932363476 |
| Working length [mm]: | 43 |
| Name: Model Variant: | HSSR 4.2 x 75 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329779 |
Metal Drill HSSR D338 4.5mm-10pc
| Article no.: | 4932363479 |
| Working length [mm]: | 47 |
| Name: Model Variant: | HSSR 4.5 x 80 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329809 |
Metal Drill HSSR D338 4.8mm-10pc
| Article no.: | 4932363482 |
| Working length [mm]: | 52 |
| Name: Model Variant: | HSSR 4.8 x 86 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329830 |
Metal Drill HSSR D338 5.0mm-10pc
| Article no.: | 4932363484 |
| Working length [mm]: | 52 |
| Name: Model Variant: | HSSR 5.0 x 86 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329854 |
Metal Drill HSSR D338 5.5mm-10pc
| Article no.: | 4932363489 |
| Working length [mm]: | 57 |
| Name: Model Variant: | HSSR 5.5 x 93 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329908 |
Metal Drill HSSR D338 6.0mm-10pc
| Article no.: | 4932363494 |
| Working length [mm]: | 57 |
| Name: Model Variant: | HSSR 6.0 x 93 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395329953 |
Metal Drill HSSR D338 6.5mm-10pc
| Article no.: | 4932363499 |
| Working length [mm]: | 63 |
| Name: Model Variant: | HSSR 6.5 x 101 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330003 |
Metal Drill HSSR D338 6.8mm-10pc
| Article no.: | 4932363502 |
| Working length [mm]: | 69 |
| Name: Model Variant: | HSSR 6.8 x 109 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330034 |
Metal Drill HSSR D338 7.0mm-10pc
| Article no.: | 4932363504 |
| Working length [mm]: | 69 |
| Name: Model Variant: | HSSR 7.0 x 109 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330058 |
Metal Drill HSSR D338 7.5mm-10pc
| Article no.: | 4932363509 |
| Working length [mm]: | 69 |
| Name: Model Variant: | HSSR 7.5 x 109 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330102 |
Metal Drill HSSR D338 8.0mm-10pc
| Article no.: | 4932363514 |
| Working length [mm]: | 75 |
| Name: Model Variant: | HSSR 8.0 x 117 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330157 |
Metal Drill HSSR D338 8.5mm-10pc
| Article no.: | 4932363519 |
| Working length [mm]: | 75 |
| Name: Model Variant: | HSSR 8.5 x 117 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330201 |
Metal Drill HSSR D338 9.0mm-10pc
| Article no.: | 4932363524 |
| Working length [mm]: | 81 |
| Name: Model Variant: | HSSR 9.0 x 125 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330256 |
Metal Drill HSSR D338 9.5mm-10pc
| Article no.: | 4932363529 |
| Working length [mm]: | 81 |
| Name: Model Variant: | HSSR 9.5 x 125 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330300 |
Metal Drill HSSR D338 10.0mm-10pc
| Article no.: | 4932363534 |
| Working length [mm]: | 87 |
| Name: Model Variant: | HSSR 10.0 x 133 – 10 pcs |
| Packed content: | 10 |
| EAN: | 4002395330355 |
Metal Drill HSSR D338 10.5mm-5pc
| Article no.: | 4932363539 |
| Working length [mm]: | 87 |
| Name: Model Variant: | HSSR 10.5 x 133 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330409 |
Metal Drill HSSR D338 11.0mm-5pc
| Article no.: | 4932363544 |
| Working length [mm]: | 94 |
| Name: Model Variant: | HSSR 11.0 x 142 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330454 |
Metal Drill HSSR D338 11.5mm-5pc
| Article no.: | 4932363549 |
| Working length [mm]: | 94 |
| Name: Model Variant: | HSSR 11.5 x 142 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330508 |
Metal Drill HSSR D338 12.0mm-5pc
| Article no.: | 4932363554 |
| Working length [mm]: | 101 |
| Name: Model Variant: | HSSR 12.0 x 151 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330553 |
Metal Drill HSSR D338 12.5mm-5pc
| Article no.: | 4932363559 |
| Working length [mm]: | 101 |
| Name: Model Variant: | HSSR 12.5 x 151 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330607 |
Metal Drill HSSR D338 13.0mm-5pc
| Article no.: | 4932363564 |
| Working length [mm]: | 101 |
| Name: Model Variant: | HSSR 13.0 x 151 – 5 pcs |
| Packed content: | 5 |
| EAN: | 4002395330652 |
Metal Drill HSSR D338 13.5mm-1pc
| Article no.: | 4932373318 |
| Working length [mm]: | 108 |
| Name: Model Variant: | HSSR 13.5 x 160 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348435 |
Metal Drill HSSR D338 14.0mm-1pc
| Article no.: | 4932373319 |
| Working length [mm]: | 108 |
| Name: Model Variant: | HSSR 14.0 x 160 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348442 |
Metal Drill HSSR D338 14.5mm-1pc
| Article no.: | 4932373320 |
| Working length [mm]: | 108 |
| Name: Model Variant: | HSSR 14.5 x 169 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348459 |
Metal Drill HSSR D338 15.0mm-1pc
| Article no.: | 4932373321 |
| Working length [mm]: | 114 |
| Name: Model Variant: | HSSR 15.0 x 169 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348466 |
Metal Drill HSSR D338 15.5mm-1pc
| Article no.: | 4932373322 |
| Working length [mm]: | 120 |
| Name: Model Variant: | HSSR 15.5 x 178 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348473 |
Metal Drill HSSR D338 16.0mm-1pc
| Article no.: | 4932373323 |
| Working length [mm]: | 120 |
| Name: Model Variant: | HSSR 16.0 x 178 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348480 |
Metal Drill HSSR D338 16.5mm-1pc
| Article no.: | 4932373324 |
| Working length [mm]: | 125 |
| Name: Model Variant: | HSSR 16.5 x 184 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395348497 |
Metal Drill HSSR D338 17.0mm-1pc
| Article no.: | 4932373325 |
| Working length [mm]: | 125 |
| Name: Model Variant: | HSSR 17.0 x 184 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349104 |
Metal Drill HSSR D338 17.5mm-1pc
| Article no.: | 4932373326 |
| Working length [mm]: | 130 |
| Name: Model Variant: | HSSR 17.5 x 191 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349111 |
Metal Drill HSSR D338 18.0mm-1pc
| Article no.: | 4932373327 |
| Working length [mm]: | 130 |
| Name: Model Variant: | HSSR 18.0 x 191 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349128 |
Metal Drill HSSR D338 18.5mm-1pc
| Article no.: | 4932373328 |
| Working length [mm]: | 135 |
| Name: Model Variant: | HSSR 18.5 x 198 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349135 |

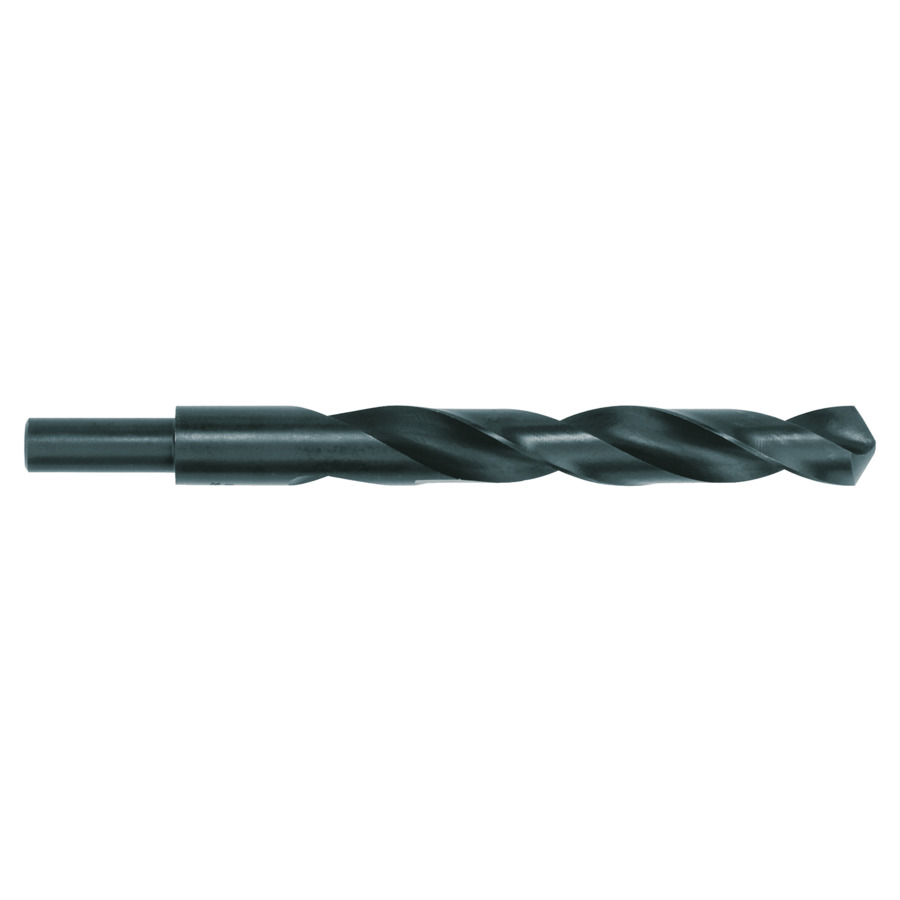

Metal Drill HSSR D338 19.0mm-1pc
| Article no.: | 4932373329 |
| Working length [mm]: | 135 |
| Name: Model Variant: | HSSR 19.0 x 198 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349142 |
Metal Drill HSSR D338 19.5mm-1pc
| Article no.: | 4932373330 |
| Working length [mm]: | 140 |
| Name: Model Variant: | HSSR 19.5 x 205 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349159 |
Metal Drill HSSR D338 20.0mm-1pc
| Article no.: | 4932373331 |
| Working length [mm]: | 140 |
| Name: Model Variant: | HSSR 20.0 x 205 – 1 pc |
| Packed content: | 1 |
| EAN: | 4002395349166 |
